I. Product Overview

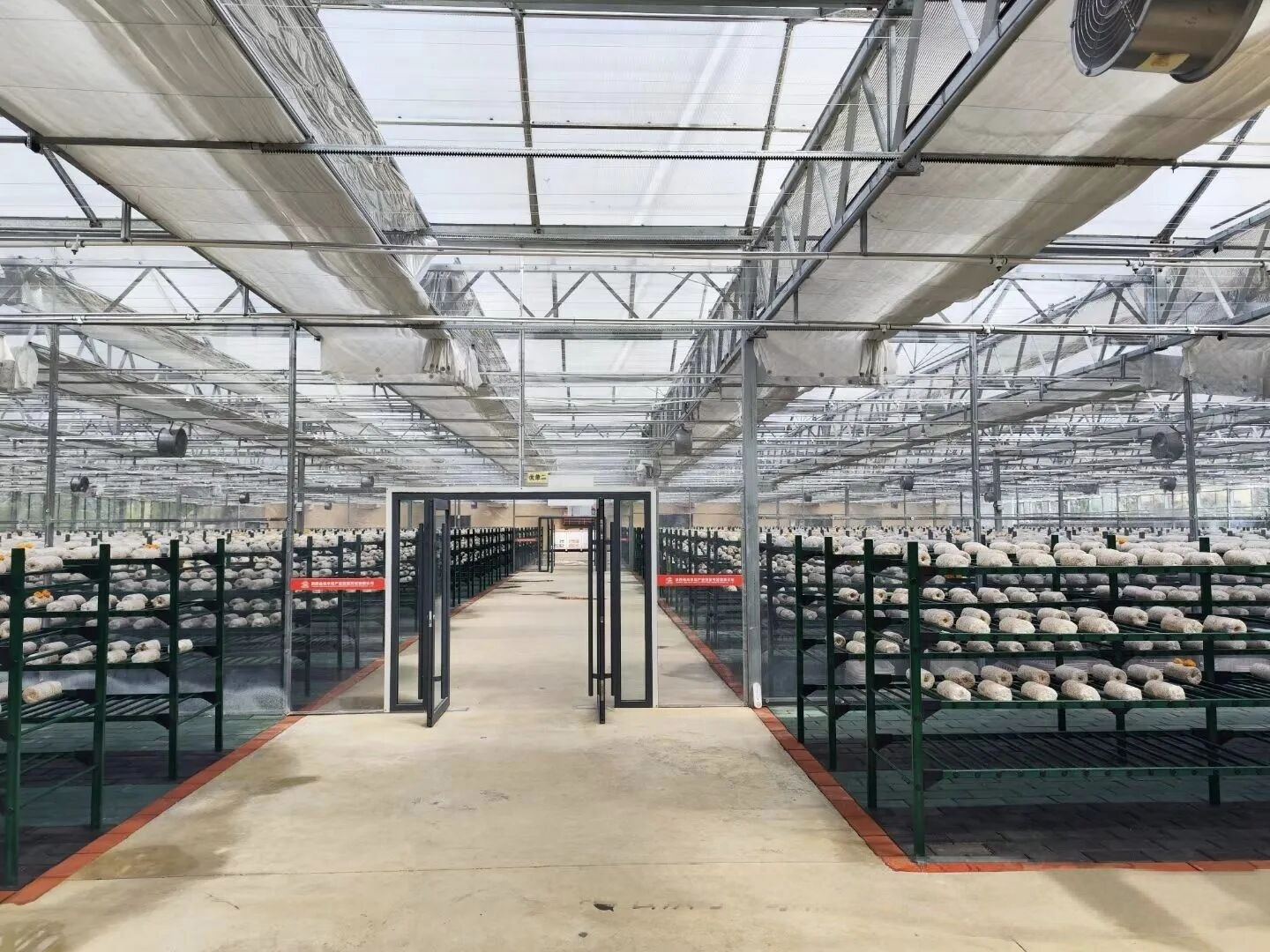

This edible mushroom cultivation greenhouse is designed for standardized, large-scale mushroom production. It combines a modern greenhouse structure with an intelligent environmental control system to accurately simulate the growing conditions required by different mushroom varieties. The system enables year-round production independent of seasonal changes, significantly improving yield and quality.
II. Greenhouse Design & Configuration
1. Main Structure
· Frame: Hot-dip galvanized steel structure, wind and snow resistant, service life ≥15 years
· Covering Material:Film / polycarbonate (PC) sheet, providing thermal insulation and adjustable light transmission
· Shading System: Internal and external shade nets, shading rate 65%–85% to meet light sensitivity requirements of different mushrooms
2. Environmental Control Systems

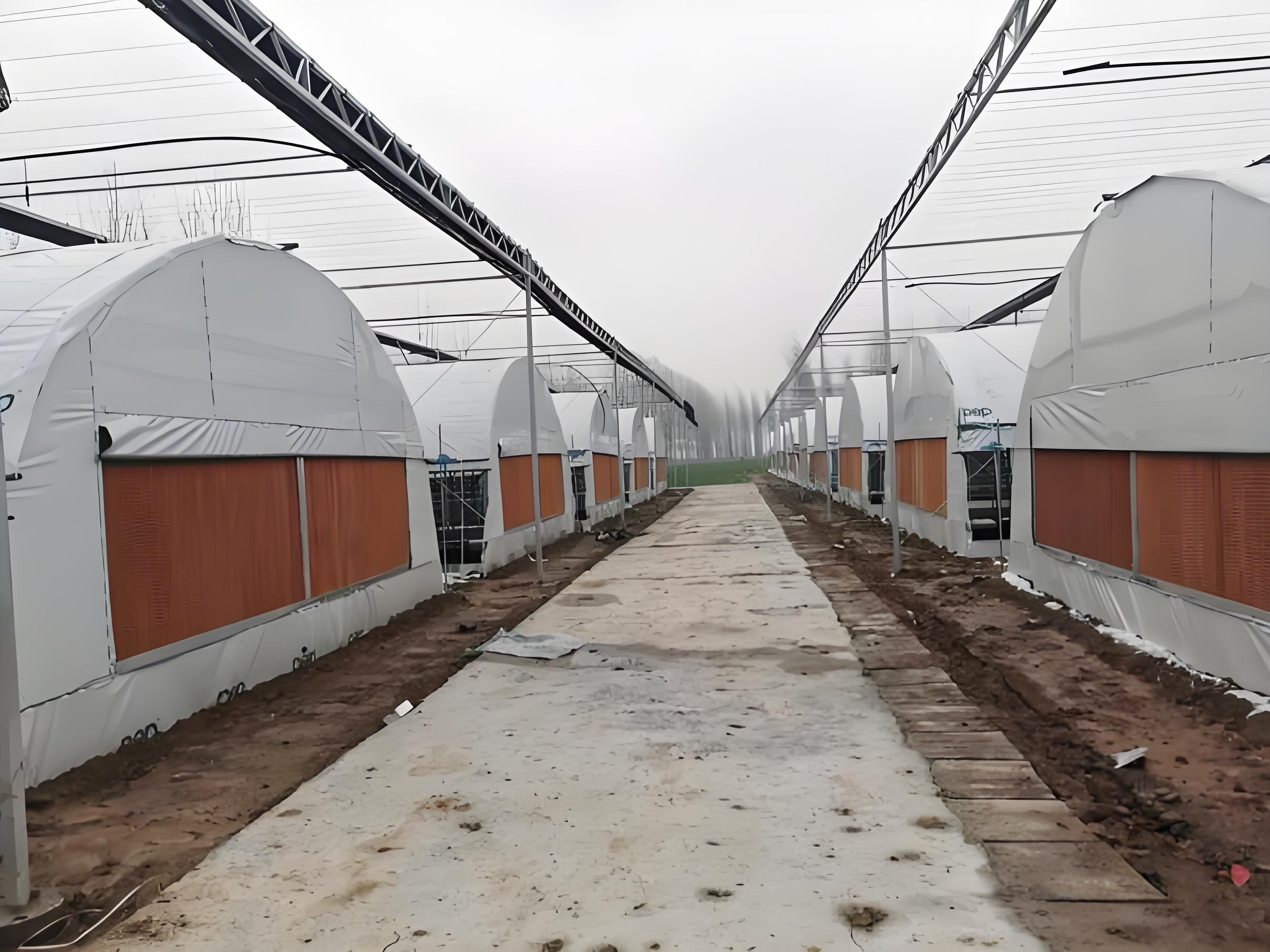

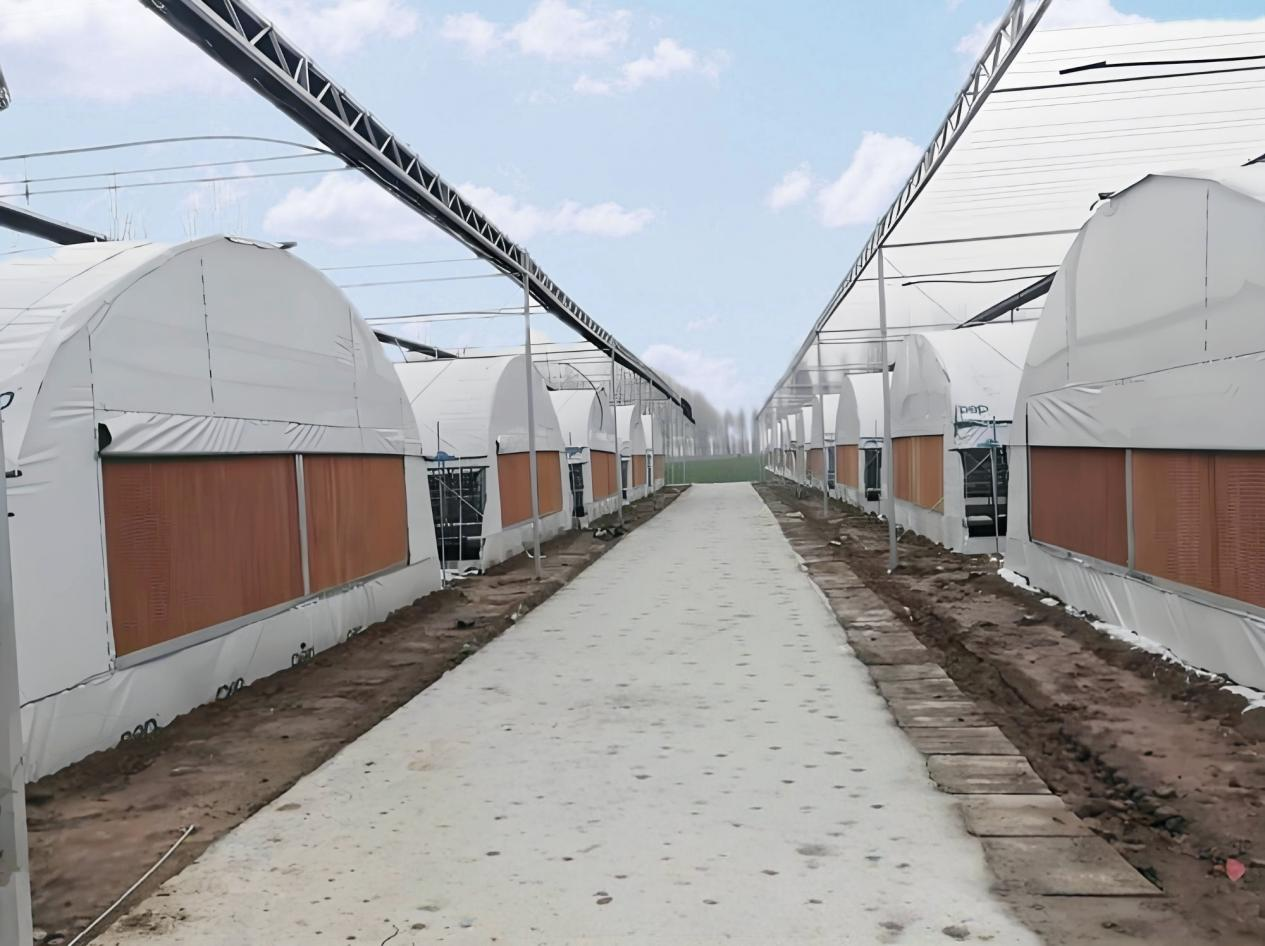

· Temperature Control: Pad & fan cooling + air-source heat pump heating, control range 5°C–30°C, accuracy ±1°C

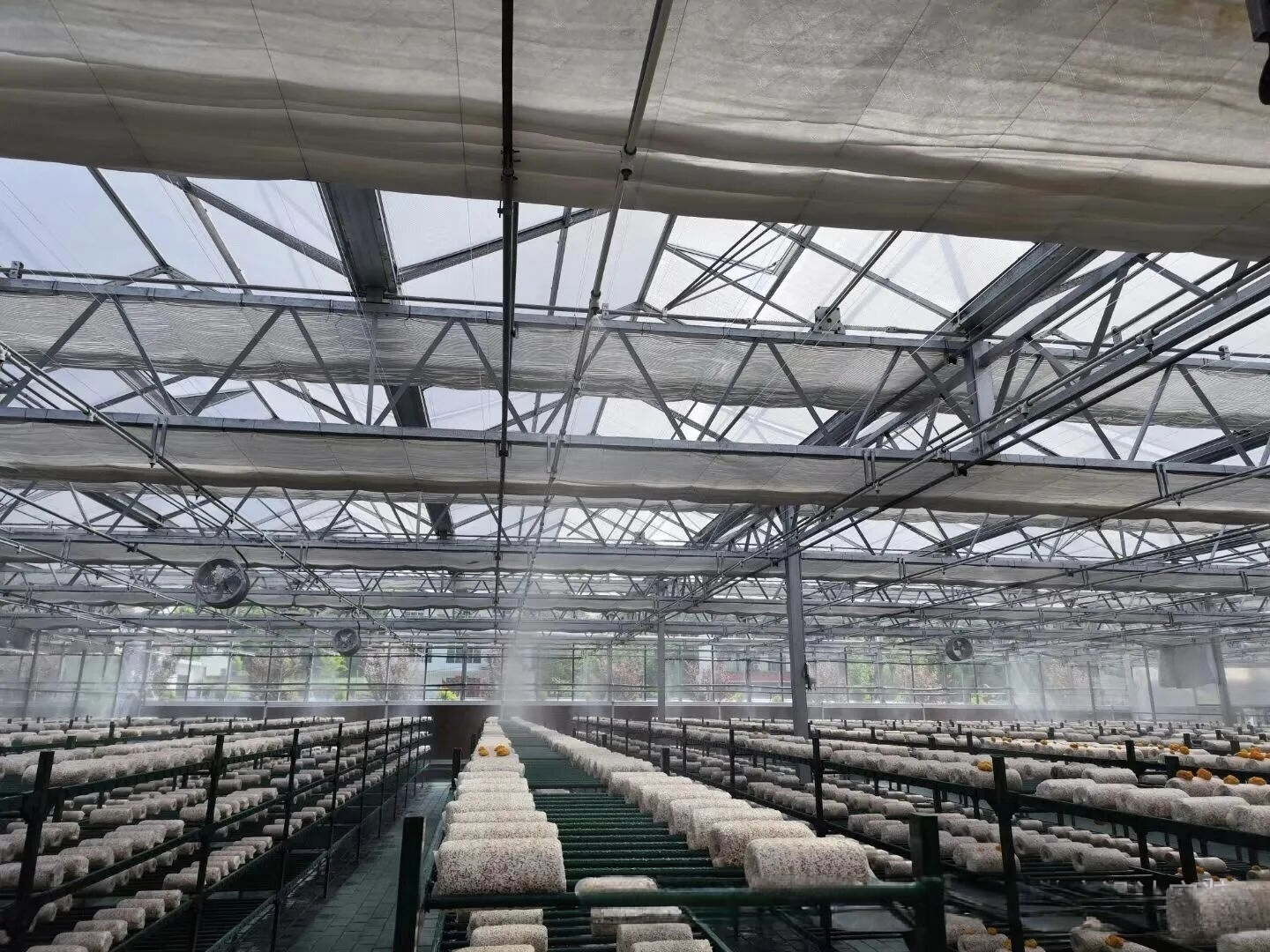

· Humidity Control: High-pressure fogging + ultrasonic humidification, humidity range 70%–95%, accuracy ±5%
· Ventilation System: Axial fans + positive pressure filtered air supply, CO₂ concentration adjustable (500–2000 ppm)

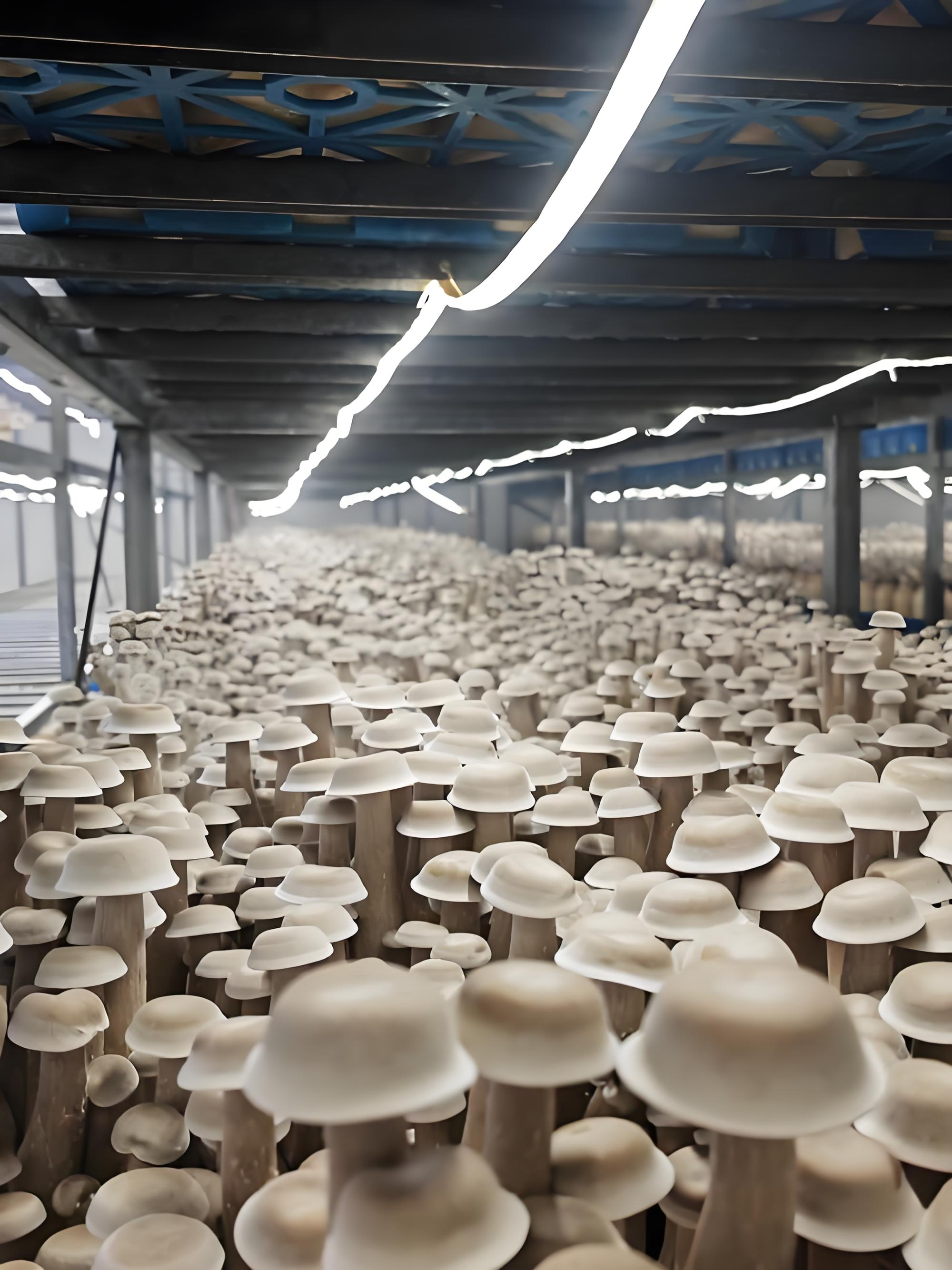

· Supplemental Lighting: LED plant grow lights (red/blue/full spectrum), programmable timer
3. Cultivation Equipment

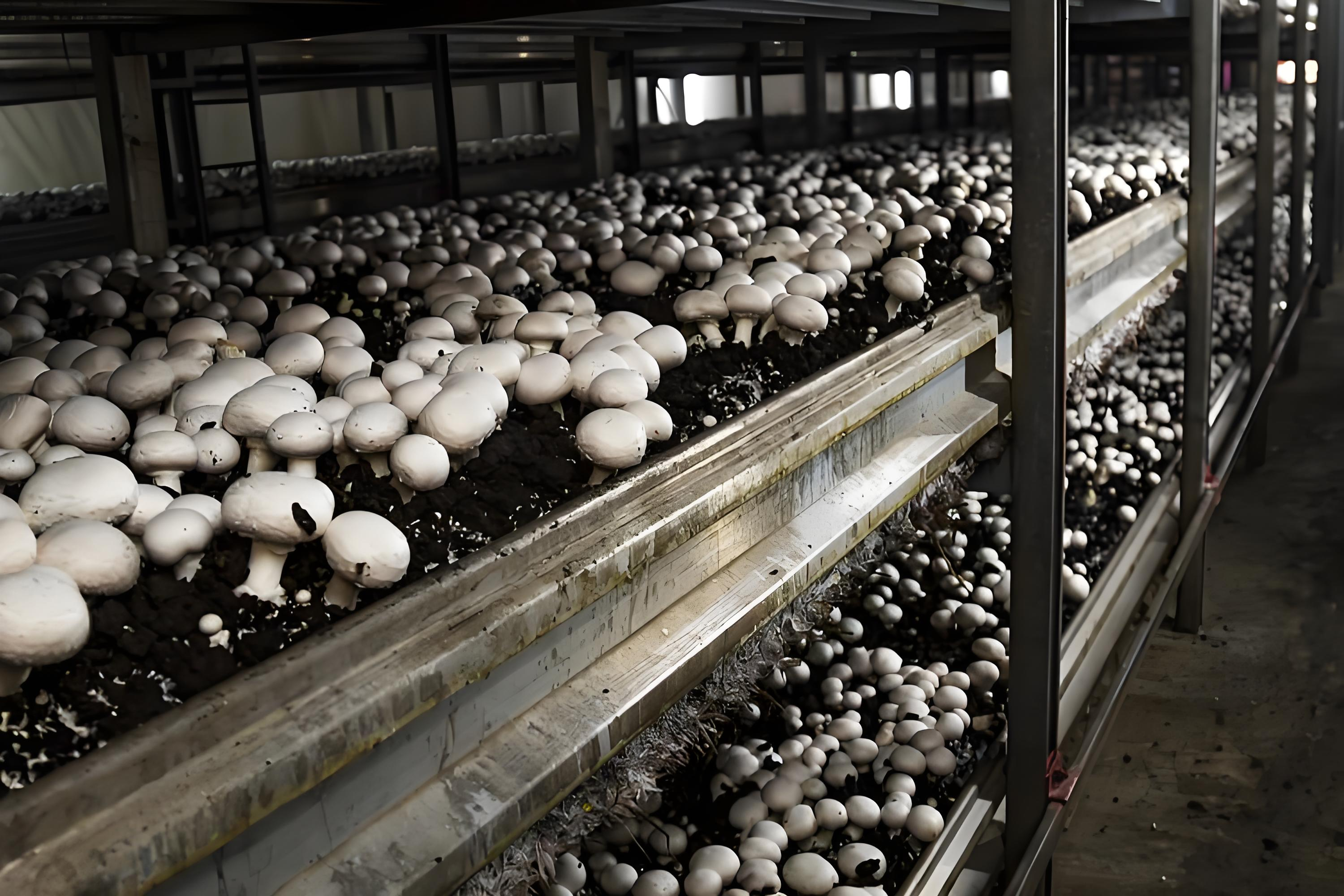

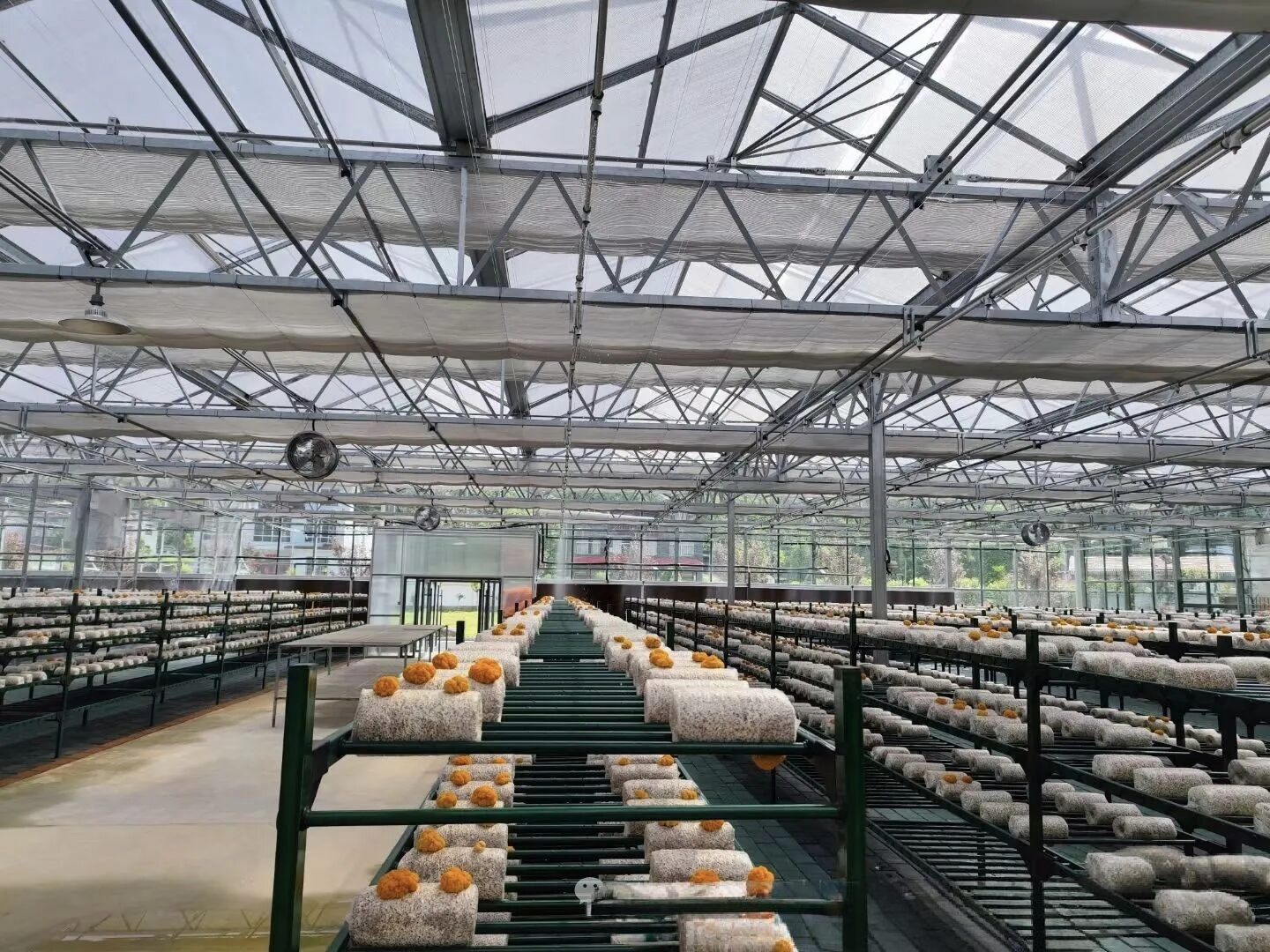

· Multi-layer shelving (4–6 tiers), increasing land use efficiency by 2–3 times
· Movable mushroom bag trays for easy operation and cleaning
· Optional automated inoculation and harvesting conveyor belts
4. Intelligent Control System
· IoT sensors for real-time monitoring of temperature, humidity, light, CO₂, and substrate pH
· Remote control and alarm (over-limit, equipment failure) via mobile phone or computer
· Historical data recording and cultivation model optimization
---
III. Suitable Climatic Conditions
Climate Type Suitability Notes
Temperate continental Very suitable Four distinct seasons; stable production achievable with this greenhouse
Subtropical monsoon Suitable Enhanced ventilation & cooling in summer; minimal heating required in winter
Plateau mountain Moderately suitable Large day-night temperature difference; requires extra insulation and night heating
Tropical / Arid Adaptable Additional cooling and fogging systems needed to avoid high temperature & low humidity
Adaptability Note: With the climate control system, the greenhouse can operate normally in regions with annual mean temperatures from -10°C to 40°C and relative humidity from 30% to 90%. Extreme climates (e.g., long-term below -15°C or above 42°C) require reinforced temperature control modules.
---
IV. Suitable Mushroom Varieties
By adjusting environmental parameters, this greenhouse can cultivate the following common and high-value edible mushrooms:
|
Variety |
Temperature Range |
Humidity Requirement |
Light Requirement |
Growth Cycle |
|
Shiitake |
15–25°C |
80–90% |
Weak diffused light |
60–90 days |
|
Oyster mushroom |
20–28°C |
85–95% |
Dark or very weak light |
30–45 days |
|

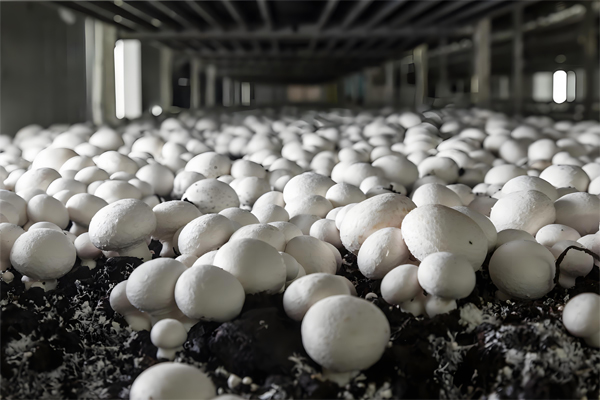

Button mushroom |
16–20°C |
85–90% |
Complete darkness |
45–60 days |
|
Enoki mushroom |
6–15°C |
80–85% |
Weak light to prevent cap opening |
40–55 days |
|
King oyster mushroom |
12–18°C |
85–90% |
Very weak diffused light |
50–65 days |
|
Wood ear mushroom |
20–28°C |
85–95% |
Alternating dry/wet + diffused light |
50–70 days |
|

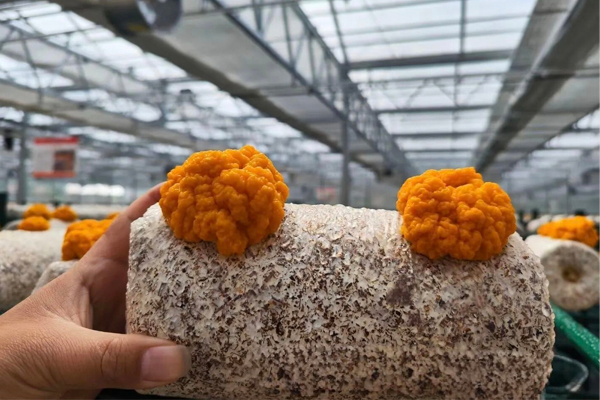

Morel |
10–22°C |
75–90% |
Weak light |
90–120 days |
|
Wine cap stropharia |
15–25°C |
80–90% |
Weak diffused light |
60–80 days |
Note: The above are standard parameters; fine-tuning may be required for specific strains.
V. Key Advantages
· ✅ Year-round production – Unaffected by external seasons, supporting 4–6 cultivation batches per year
· ✅ High yield & quality – Stable environment reduces contamination rate by over 50%, increases yield by 30%–60%
· ✅ Energy saving & labor saving – Intelligent control reduces manual intervention; energy consumption about 25% lower than traditional greenhouses
· ✅ Flexible expansion – Modular design, available as single-span or multi-span units, from 200 m² to 10,000 m² customized
VI. Application Cases
· Yunnan Morel Base (altitude 1,900 m): After using this greenhouse, fruiting rate increased by 40%, successfully achieving off-season cultivation.
· Hebei Shiitake Cooperative (low-temperature winter region): With reinforced insulation and air-source heat pump, maintained 18–22°C even in winter.
VII. Optional Value-Added Services
· Free cultivation technical training (for purchased varieties)
· Spawn / substrate bag supply chain recommendations
· Remote greenhouse operation & maintenance service
